Product features
Thermoplastic enclosure
High degree of protection IP69, IP69K
Salt-mist proof
Mounting details to EN 50047
Wiring compartment
Actuator: Long roller plunger RL
Wear-resistant plastic roller
Actuator can be repositioned by 4 x 90°
Notes
1 cable gland M20x1.5 - IP 69 included in delivery.
Technical data
General technical data
- Applied standards
- EN ISO 13849-1, EN 60947-5-1, EN ISO 14119
- Enclosure
- thermoplastic, glass-fibre reinforced, shockproof, self-extinguishing UL 94 V-0
- Cover
- thermoplastic, glass-fibre reinforced, shockproof, self-extinguishing UL 94 V-0
- Switch type
- type 1
- Coding level
- no coding
- Degree of protection
- IP66, IP67, IP69 (IEC/EN 60529) / IP69K (ISO 20653)
- B10d (10 % load)
- -20 °C: 800 000
+20 °C: 2 000 000
+70 °C: 1 000 000
- TM
- max. 20 years
- Contact material
- silver
- Switching system
- slow action, positive break NC contacts A
- Switching elements
- 1 NC/1 NO contact, type Zb
- Connection
- screw connection terminals
- Cable cross-section
- max. 2.5 mm² (incl. conductor ferrules)
- Cable entry
- 1 x M20 x 1.5 (for cable glands only)
- Clamping range
- 6 … 13 mm
- Rated impulse withstand voltage Uimp
- 4 kV
- Rated insulation voltage Ui
- 250 V
- Conventional thermal current Ithe
- 6 A
- Rated operating current/voltage Ie/Ue
- 6 A/250 VAC, 0.25 A/230 VDC
- Utilisation category
- AC-15; DC-13
- Short-circuit protection
- 6 A gG fuse
- Safety class
- II
- Mechanical life
- -20 °C: 400 000 operations
+20 °C: 1 000 000 operations
+70 °C: 500 000 operations
- Operation cycles
- max. 1800/h
- Contact opening
- max. 2 x 3.5 mm
- Ambient temperature
- –40 °C … +80 °C
- Approvals
- <

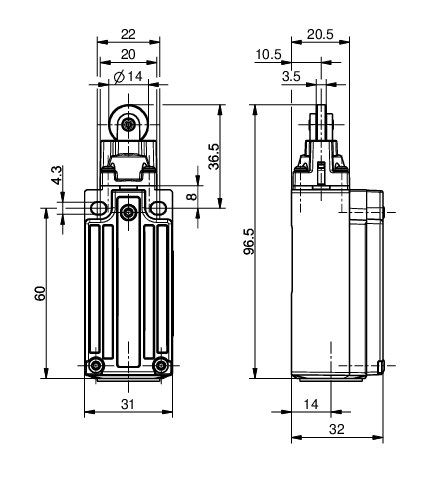

Dimensional drawing
Further drawings
Contact diagram

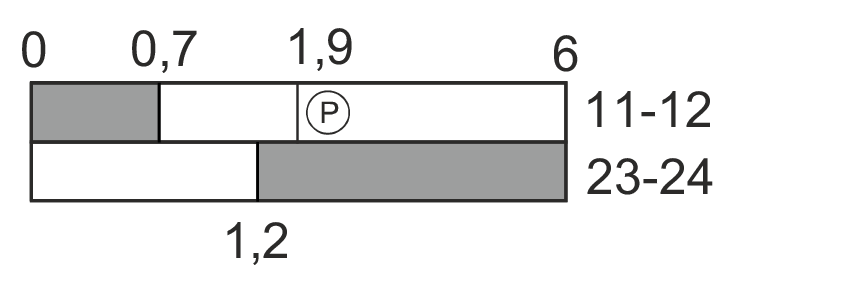

Switching diagram
