Contact diagram

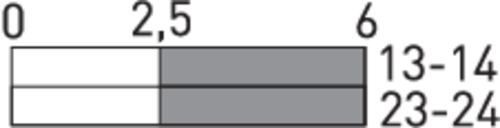

Switching diagram

Pull-wire switch

ES 41 Z 2S Ceiling mounting DM

Article no.: 1188926Old article no.: 41641904

contact us

Product features

  • Metal enclosure

  • Version for ceiling mounting with mounting plate

  • Slow action: 2 contacts

  • Pull-wire function

Technical data

Applied standards

EN 60947-5-1

Enclosure

aluminium die-cast, powder-coated

Cover

steel, powder-coated

Degree of protection

IP65 (IEC/EN 60529)

Contact material

silver

Switching elements

2 NO contacts

Switching system

slow action

Connection

screw connection terminals

Cable cross-section

max. 2.5 mm² (incl. conductor ferrules)

Cable entry

3 x M16 x 1.5 (for cable glands only)

Rated impulse withstand voltage Uimp

4 kV

Rated insulation voltage Ui

400 V

Conventional thermal current Ithe

6 A

Utilisation category

AC-15

Rated operating current/voltage Ie/Ue

6 A/400 VAC

Short-circuit protection

6 A gG/gN fuse

Ambient temperature

–20 °C … +80 °C

Mechanical life

> 1 million operations

Operation cycles

max. 3600/h

Actuating force

max. 45 N

Approvals

a

Weight

244 g

Downloads

Mounting and wiring instructions – ES/EM 41 Z / ES 41 WH/90° / ES 51 Z / ES/EM 61 Z / ES 95 Z / ZS 70 Z / ZS 71 Z

German, English, French, Italian, Portuguese

PDF2 MB 04.02.2025
