Standard version
Pull-wire switch
ES 41 Z 1Ö/1S -40°C Extreme
Article no.: 1188168Old article no.: 41041928
contact usProduct features
Cold-resistant down to -40 °C
Metal enclosure
Wall mounting
Slow action: 2 contacts
Pull-wire function
Attention: Please state required international approvals with your order!
Technical data
General technical data
Applied standards
EN 60947-5-1
Enclosure
aluminium die-cast, powder-coated
Cover
steel, powder-coated
Sealing
silicone
Degree of protection
IP65 (IEC/EN 60529)
Contact material
silver

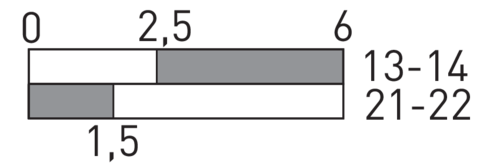

Switching elements
1 NC/1 NO contact
Switching system
slow action
Connection
screw connection terminals
Cable cross-section
max. 2.5 mm² (incl. conductor ferrules)
Cable entry
3 x M16 x 1.5
Rated impulse withstand voltage Uimp
4 kV
Rated insulation voltage Ui
400 V
Conventional thermal current Ithe
6 A
Utilisation category
AC-15
Rated operating current/voltage Ie/Ue
6 A/400 VAC
Short-circuit protection
6 A gG/gN fuse
Ambient temperature
–40 °C … +80 °C
Mechanical life
> 1 million operations
Operation cycles
max. 3600/h
Actuating force
max. 45 N
Approvals
a
Weight
160 g
Downloads
Variants / Options
The following variants / options are available on request:
Thermoplastic cover
