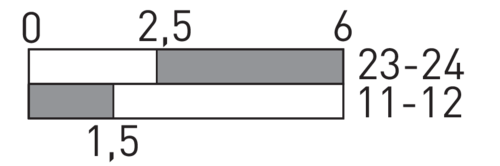

Switching diagram
Standard version

Pull-wire switch

ES 41 WH/90° 1Ö/1S - 3.2 m nylon pull-wire with rubber ball

Article no.: 1177335Old article no.: 41014916

contact us

Product features

  • Version for door/gate opening ES 41 WH/90° 1Ö/1S:
    including 3.2 m long nylon pull-wire with rubber ball, including mounting screws and rawlplugs

  • Metal enclosure with plastic cover

  • Wall mounting

  • Slow action: 2 contacts

  • Pull-wire function

Technical data

Applied standards

EN 60947-5-1

Enclosure

aluminium die-cast, powder-coated

Cover

steel, powder-coated

Degree of protection

IP65 (IEC/EN 60529)

Contact material

silver

Switching elements

1 NC/1 NO contact

Switching system

slow action, positive break NC contacts A

Connection

screw connection terminals

Cable cross-section

max. 2.5 mm² (incl. conductor ferrules)

Cable entry

3 x M16 x 1.5 (for cable glands only)

Rated impulse withstand voltage Uimp

4 kV

Rated insulation voltage Ui

400 V

Conventional thermal current Ithe

6 A

Utilisation category

AC-15

Rated operating current/voltage Ie/Ue

6 A/400 VAC

Short-circuit protection

6 A gG/gN fuse

Ambient temperature

–20 °C … +80 °C

Mechanical life

> 1 million operations

Operation cycles

max. 3600/h

Actuating force

max. 45 N

Approvals

a

Weight

210 g

Downloads

Mounting and wiring instructions – ES/EM 41 Z / ES 41 WH/90° / ES 51 Z / ES/EM 61 Z / ES 95 Z / ZS 70 Z / ZS 71 Z

German, English, French, Italian, Portuguese

PDF2 MB 04.02.2025
