Product features
Metal enclosure
Slow action: 2 contacts
Actuating roller: 70 mm long
Technical data
General technical data
- Applied standards
- EN 60947-5-1
- Enclosure
- aluminium die-cast, powder-coated, RAL 7016
- Cover
- steel, powder-coated, RAL 1003
- Degree of protection
- IP65 (IEC/EN 60529)
- Contact material
- silver
- Switching elements
- 2 NC contacts, type Zb
- Switching system
- slow action
- Connection
- screw connection terminals
- Cable cross-section
- max. 2.5 mm² (incl. conductor ferrules)
- Cable entry
- 3 x M16 x 1.5
- Rated impulse withstand voltage Uimp
- 4 kV
- Rated insulation voltage Ui
- 400 V
- Conventional thermal current Ithe
- 6 A
- Utilisation category
- AC-15
- Rated operating current/voltage Ie/Ue
- 6 A/400 VAC
- Short-circuit protection
- 6 A gG/gN fuse
- Ambient temperature
- –20 °C … +80 °C
- Mechanical life
- > 1 million operations
- Operation cycles
- max. 1800/h
- Approvals
- a
- Weight
- 268 g

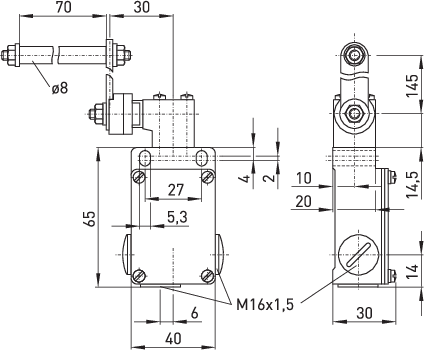

Dimensional drawing
Further drawings
Contact diagram
Switching diagram
