Slack-wire switch
ES 41 DB/90° 1Ö/1S - 70 mm
Article no.: 1046330Old article no.: 41021903
Standard version
contact us
Product features
Metal enclosure
Slow action: 2 contacts
Actuating roller: 70 mm long
Technical data
General technical data
- Applied standards
- EN 60947-5-1
- Enclosure
- aluminium die-cast, powder-coated, RAL 7016
- Cover
- steel, powder-coated, RAL 1003
- Degree of protection
- IP65 (IEC/EN 60529)
- Contact material
- silver
- Switching elements
- 1 NC/1 NO contact, type Zb
- Switching system
- slow action
- Connection
- screw connection terminals
- Cable cross-section
- max. 2.5 mm² (incl. conductor ferrules)
- Cable entry
- 3 x M16 x 1.5
- Rated impulse withstand voltage Uimp
- 4 kV
- Rated insulation voltage Ui
- 400 V
- Conventional thermal current Ithe
- 6 A
- Utilisation category
- AC-15
- Rated operating current/voltage Ie/Ue
- 6 A/400 VAC
- Short-circuit protection
- 6 A gG/gN fuse
- Ambient temperature
- –20 °C … +80 °C
- Mechanical life
- > 1 million operations
- Operation cycles
- max. 1800/h
- Approvals
- a
- Weight
- 270 g
Dimensional drawing
Further drawings

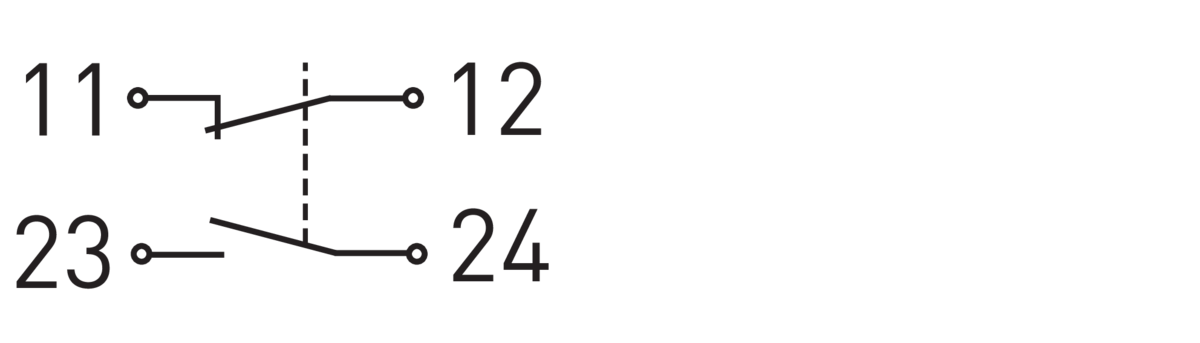

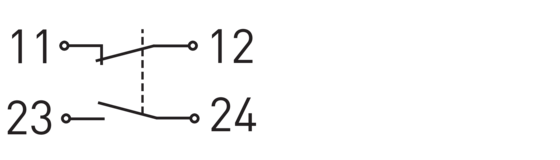

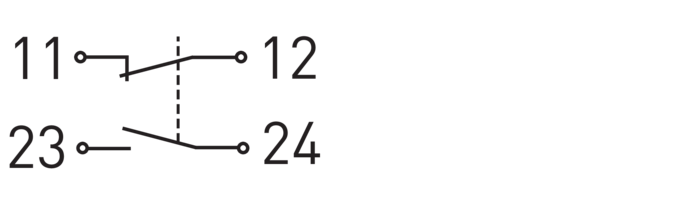

Contact diagram

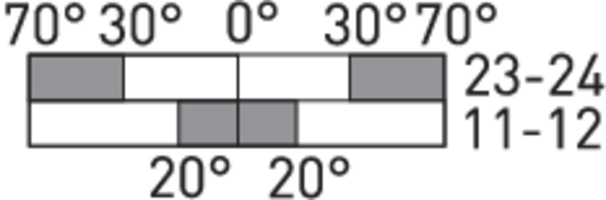

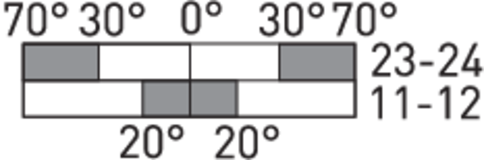

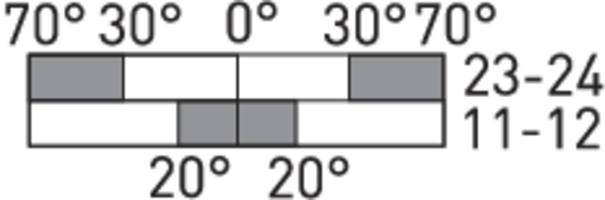

Switching diagram
Downloads
Variants / Options
The following variants / options are available on request:
Various actuating rollers
