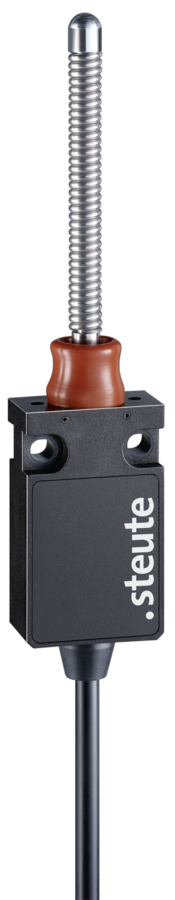

Position switch
ES 14 TF 1Ö/1S - 2m -40°C IP66 Extreme
Article no.: 1189402Old article no.: 14034902
Product features
Cold-resistant down to -40 °C
High degree of protection IP66
Thermoplastic enclosure with cable
Mounting details to EN 50047
Actuator: Spring rod with steel tip TF
With rounded steel tip
Spring rod can be actuated from any direction
Elasticity of the spring allows for deflection above the max. switching angle of 18°
Technical data
General technical data
- Applied standards
- EN 60947-5-1
- Enclosure
- thermoplastic, glass-fibre reinforced, shockproof, self-extinguishing UL 94 V-0
- Degree of protection
- IP66 (IEC/EN 60529)
- Contact material
- silver
- Switching system
- slow action
- Switching elements
- 1 NC/1 NO contact, type Zb
- Connection
- cable 4 x AWG 20
- Cable diameter
- 5.2 mm
- Cable length
- 2 m
- Cable cross-section
- 4 x AWG 20 (4 x 0.56 mm²)
- Rated impulse withstand voltage Uimp
- 4 kV
- Rated insulation voltage Ui
- 250 V
- Conventional thermal current Ithe
- 6 A
- Rated operating current/voltage Ie/Ue
- 6 A/250 VAC; 0.25 A/230 VDC
- Utilisation category
- AC-15; DC-13
- Short-circuit protection
- 6 A gG fuse
- Safety class
- II
- Ambient temperature
- –40 °C … +75 °C
- Mechanical life
- > 1 million operations
- Operation cycles
- max. 1800/h
- Repeat accuracy of switching points
- ± 0.1 mm
- Contact opening
- max. 2 x 4 mm
- Approvals
- da
- Weight
- 140 g
Dimensional drawing
Further drawings

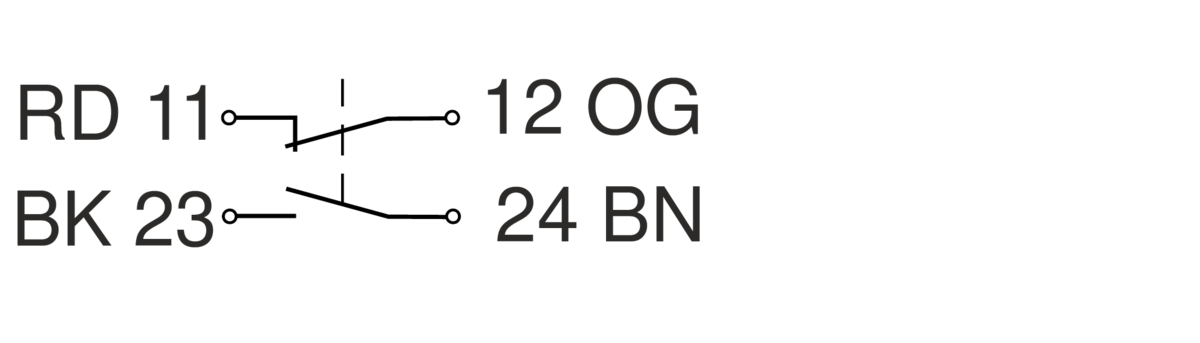

Contact diagram
Switching diagram
Downloads
Variants / Options
The following variants / options are available on request:
Cable entry on side
Gold-plated contacts
Latching element (On-/Off principle)
