Product features
Thermoplastic enclosure
Design to EN 50047
Horizontally slotted mounting holes
Double insulated X
Cover fixed without screws

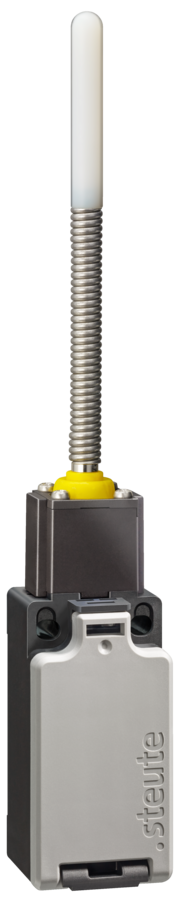

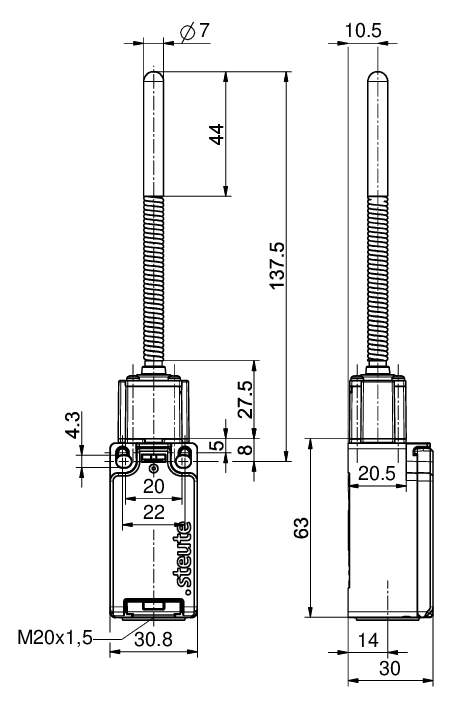

Actuator: Spring rod with plastic tip TK
Wear-resistant plastic tip
Spring rod can be actuated from any direction
Technical data
General technical data
Applied standards
EN 60947-5-1, EN ISO 13849-1
Enclosure
thermoplastic, glass-fibre reinforced, shockproof, self-extinguishing UL 94 V-0, weathering resistant, UV stabilised
Degree of protection
IP66/IP67 (IEC/EN 60529)
Switching system
snap action
Switching elements
1 NC/1 NO contact, type Zb
Connection
screw connection terminals
Cable cross-section
0.34 ... 2.5 mm² (incl. conductor ferrules)
Cable entry
1 x M20 x 1.5 (for cable glands only)
Rated impulse withstand voltage Uimp
6 kV
Rated insulation voltage Ui
500 V
Conventional thermal current Ithe
10 A
Utilisation category
AC-15; DC-13
Rated operating current/voltage Ie/Ue
AC: 24 V-10 A/120 V-6 A/400 V-4 A
DC: 24 V-6A/125 V-0.55 A/250 V-0.4 A
Minimum electrical load: 5 V/10 mA
Short-circuit protection
10 A gG/gL fuse
Conditional short-circuit current
1000 A
Operation cycles
max. 1800/h
Mechanical life
1 million operations
Ambient temperature
–30 °C … +70 °C
Approvals
da
Chemical resistance
Enclosure material resistant to:
oil and petrol, alcohol, animal fats and oils, vegetable fats and oils, silicone oils, surfactants, detergents, water vapour, salt water, organic acids (citric acid, benzoic acid)
Enclosure material not resistant to:
mineral acids (concentrated hydrochloric acid, battery acid, sulphuric acid, nitric acid)
Downloads
Variants / Options
The following variants / options are available on request:
Mechanical latching
