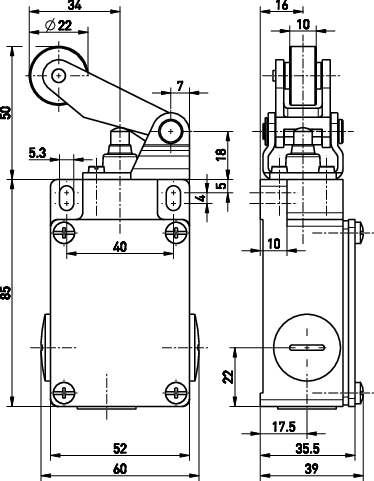

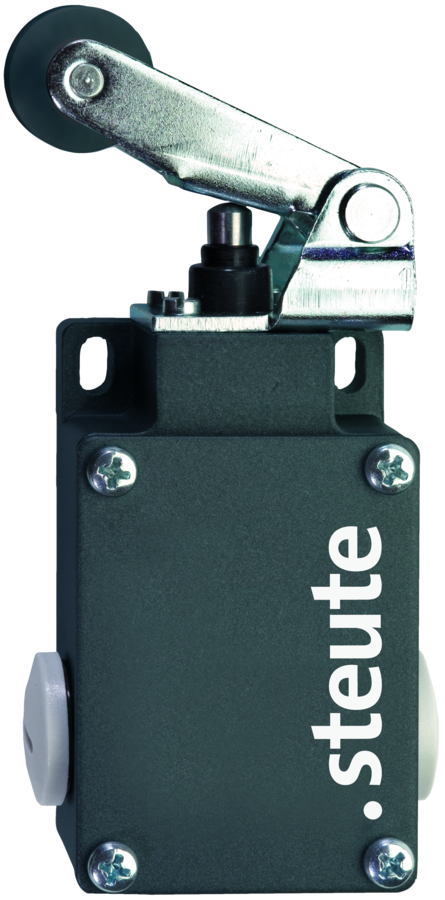

Product features
Metal enclosure
Snap action
3 cable entries M20 x 1.5
Actuator: Long roller lever with collar WHL
Actuating speed max. 0.5 m/s with a vertical actuating angle
of α = 40° and β = 30°Wear-resistant plastic roller
Actuator can be repositioned by 4 x 90°
Watertight collar for protection against penetration of dirt
Notes
Actuation from the left should be avoided since this reduces the mechanical life of the position switch.
With metal roller available on request
Technical data
General technical data
Applied standards
EN 60947-5-1
Enclosure
aluminium die-cast, powder-coated
Degree of protection
IP65 (IEC/EN 60529)
Contact material
silver
Switching system
snap action

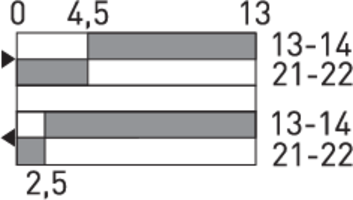

Switching elements
1 NC/1 NO contact, type Zb
Connection
screw connection terminals
Cable cross-section
max. 2.5 mm² (incl. conductor ferrules)
Cable entry
3 x M20 x 1.5 (for cable glands only)
Rated impulse withstand voltage Uimp
6 kV
Rated insulation voltage Ui
400 V
Conventional thermal current Ithe
6 A
Utilisation category
AC-15
Rated operating current/voltage Ie/Ue
6 A/400 VAC
Short-circuit protection
6 A gG/gN fuse
Mechanical life
> 1 million operations
Operation cycles
max. 3600/h
Ambient temperature
–20 °C … +80 °C
Repeat accuracy of switching points
± 0.1 mm
Approvals
a
Weight
366 g
Downloads
Variants / Options
The following variants / options are available on request:
Gold-plated contacts
Plug-in connector M12 x 1, 5-pole
