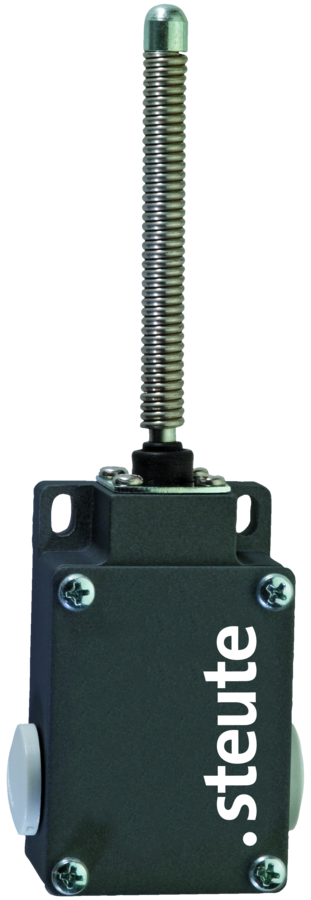

Position switch
EM 61 TF 1Ö/1S
Article no.: 1047902Old article no.: 61134001
Standard version
contact us
Product features
Metal enclosure
Snap action
3 cable entries M20 x 1.5
Actuator: Spring rod with steel tip TF
With rounded steel tip
Spring rod can be actuated from any direction
Elasticity of the spring allows for deflection above the max. switching angle
Technical data
General technical data
- Applied standards
- EN 60947-5-1
- Enclosure
- aluminium die-cast, powder-coated
- Degree of protection
- IP65 (IEC/EN 60529)
- Contact material
- silver
- Switching system
- snap action
- Switching elements
- 1 NC/1 NO contact, type Zb
- Connection
- screw connection terminals
- Cable cross-section
- max. 2.5 mm² (incl. conductor ferrules)
- Cable entry
- 3 x M20 x 1.5 (for cable glands only)
- Rated impulse withstand voltage Uimp
- 6 kV
- Rated insulation voltage Ui
- 400 V
- Conventional thermal current Ithe
- 6 A
- Utilisation category
- AC-15
- Rated operating current/voltage Ie/Ue
- 6 A/400 VAC
- Short-circuit protection
- 6 A gG fuse
- Mechanical life
- > 1 million operations
- Operation cycles
- max. 3600/h
- Ambient temperature
- –20 °C … +80 °C
- Repeat accuracy of switching points
- ± 0.1 mm
- Approvals
- a
- Weight
- 320 g

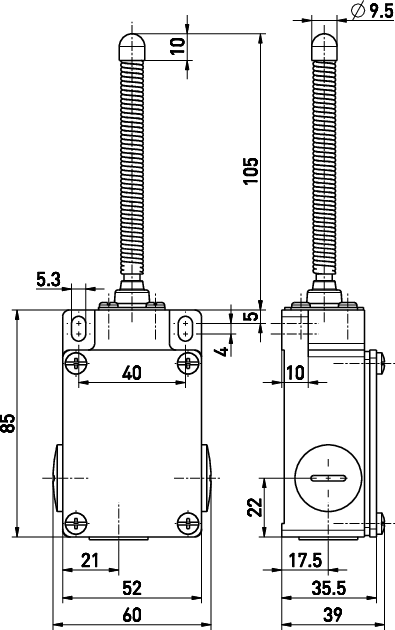

Dimensional drawing
Further drawings
Contact diagram

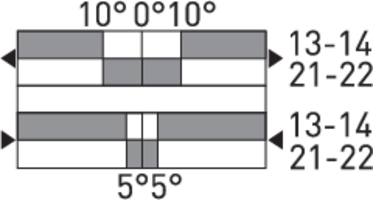

Switching diagram
Downloads
Variants / Options
The following variants / options are available on request:
Gold-plated contacts
Plug-in connector M12 x 1, 5-pole
