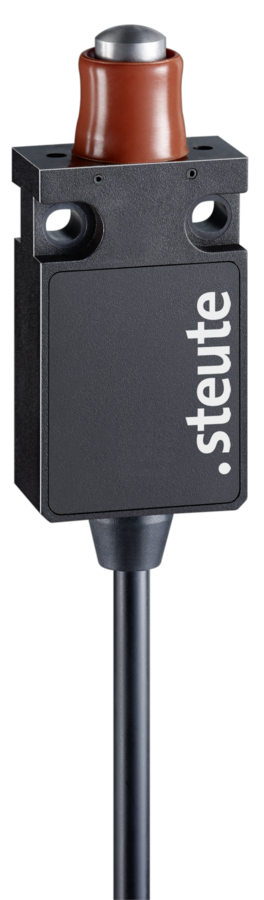

Position switch
EM 14 W - 2m -40°C IP66 Extreme
Article no.: 1189410Old article no.: 14702906
contact usProduct features
Cold-resistant down to -40 °C
High degree of protection IP66
Thermoplastic enclosure
Double insulated X
Snap action, change-over contact with single break
Mounting details to EN 50047
Suitable for in-line mounting
With pre-wired cable
Actuator: Plunger with collar W
Actuating speed max. 0.5 m/s with a vertical actuating angle of 0°
Silicone collar for protection against penetration of dirt
Technical data
General technical data
Applied standards
EN 60947-5-1
Enclosure
thermoplastic, glass-fibre reinforced, shockproof, self-extinguishing UL 94 V-0
Degree of protection
IP66 (IEC/EN 60529)
Contact material
silver
Switching system
snap action
Switching elements
1 change-over contact with single break, type C
Connection
cable 3 x AWG 20
Cable diameter
4.8 mm
Cable length
2 m
Cable cross-section
3 x AWG 20 (3 x 0.56 mm²)
Rated impulse withstand voltage Uimp
4 kV
Rated insulation voltage Ui
250 V
Conventional thermal current Ithe
5 A
Rated operating current/voltage Ie/Ue
5 A/250 VAC; 0.25 A/220 VDC
Utilisation category
AC-15; DC-13
Short-circuit protection
5 A gG/gN fuse
Ambient temperature
–40 °C … +75 °C
Mechanical life
> 1 million operations
Operation cycles
max. 1800/h

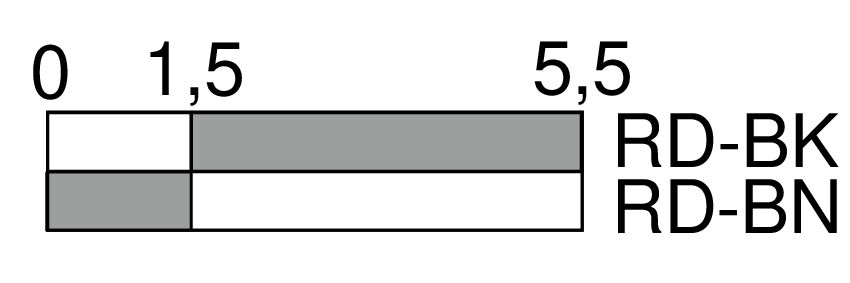

Repeat accuracy of switching points
± 0.1 mm
Contact opening
max. 2 x 4 mm
Approvals
da
Weight
122 g
Downloads
Variants / Options
The following variants / options are available on request:
Cable entry on side
Gold-plated contacts
Latching element (On-/Off principle)
