Accessories for multi-function handles
Coupling M12 x 1, 8-poles 5 m cable angled
Article no.: 1035121Old article no.: 01.36.2195
Standard version
contact us
Product features
Coupling for plug-in connector M12 x 1
Technical data
General technical data
- Degree of protection
- IP67, only with screws tightened
- Mechanical life
- min. 100 mating cycles
- Connection
- cable PVC, black
- Cable length
- 5 m
- Cable cross-section
- 8 x 0.25 mm²
- Rated operating voltage Ue
- max. 30 V
- Insulation resistance
- ≥ 109 kΩ
- Current load
- 1.5 A
- Ambient temperature
- –30 °C … +80 °C
- Weight
- 255 g

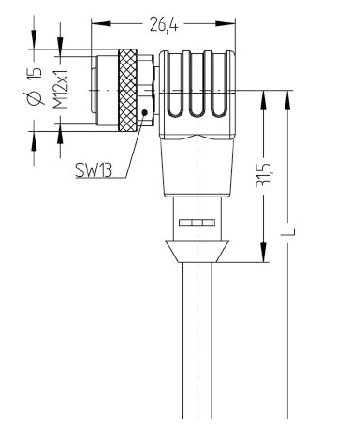

Dimensional drawing
Further drawings

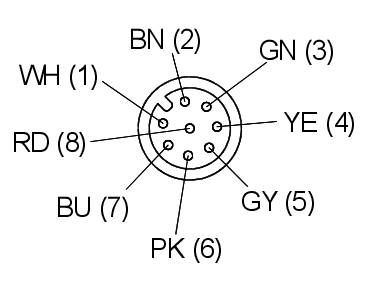

Pin assignment
