Accessories for multi-function handles

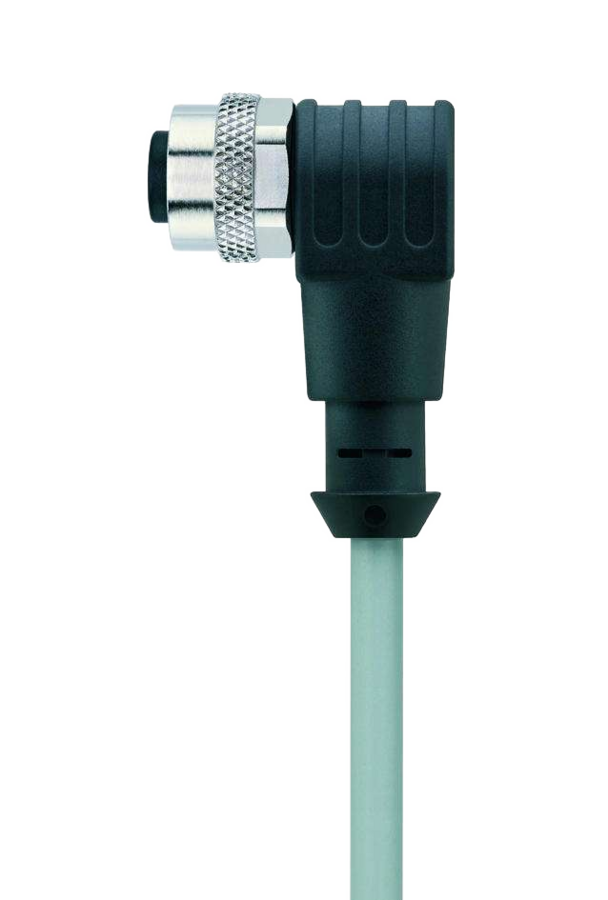

Coupling M12 x 1, 12-poles 10 m cable angled
Article no.: 1181470Old article no.: 01.36.2334
Standard version
contact us
Product features
Coupling for plug-in connector M12 x 1
Technical data
General technical data
- Degree of protection
- IP65, IP67, IP68, only with screws tightened
- Mechanical life
- min. 100 mating cycles
- Connection
- cable PVC, grey
- Cable length
- 10 m
- Cable diameter
- 6.1 mm
- Cable cross-section
- 12 x 0.14 mm²
- Rated operating voltage Ue
- max. 30 V
- Insulation resistance
- ≥ 108 Ω
- Current load
- 1.5 A
- Ambient temperature
- fixed cable: –25 °C … +80 °C,
moving cable: 0 °C … +80 °C
- Weight
- 490 g

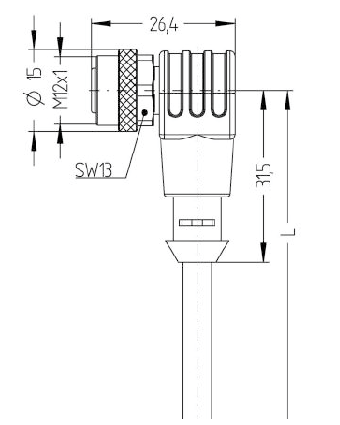

Dimensional drawing
Further drawings

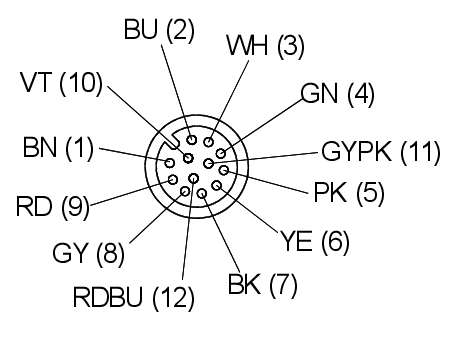

Pin assignment
