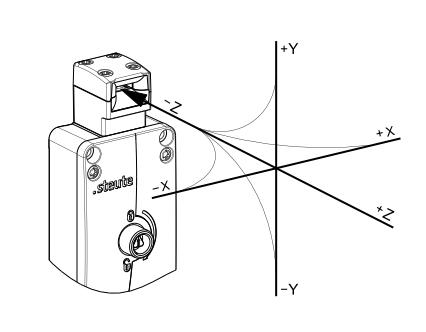

Actuating radii

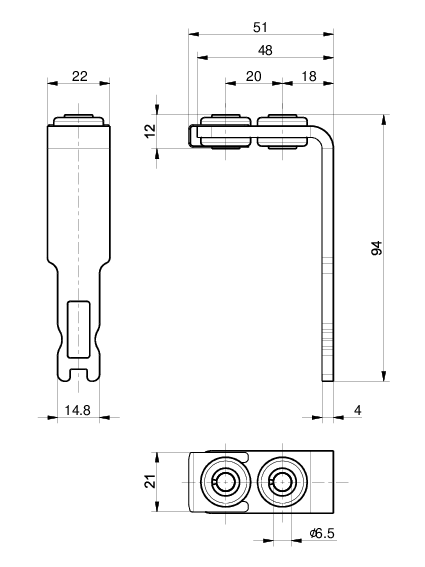

Distance between actuator/enclosure
Standard version

Accessories for STM 515 Extreme / Ex STM 515

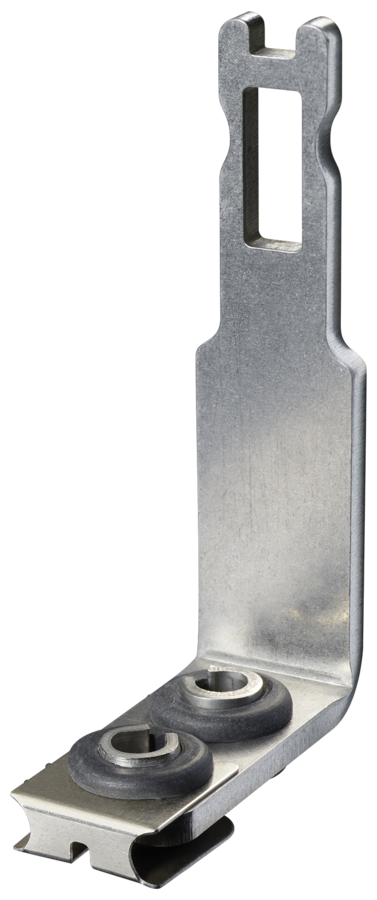

Angled actuator STM 515-B2

Article no.: 1231541

contact us

Product features

  • Especially suitable for sliding guards

  • Actuating radius on hinged guards x = 500 mm and y = 800 mm

Technical data

Actuator

stainless steel

Tightening torque

Mounting screws M4: 8 Nm

Actuating speed

≤ 0.3 m/s

Downloads

Mounting instructions – STM 515-B1, -B2, -B3

German, English, French, Italian, Portuguese

PDF244 KB 04.10.2023
