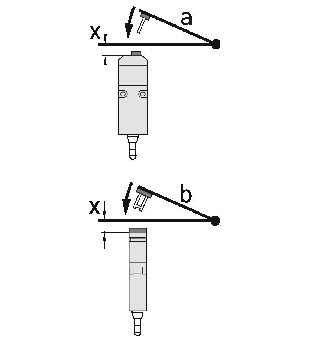

Actuating radii The axis of the hinge should be x mm above the top edge
of the safety switch and in the same plane.
a = Actuating radius to the plane of the actuator
b = Actuating radius in line with the plane of the actuator
x = Axial misalignment

Attention! x must be referred to the surface of the enclosure and not to the inserted actuator!
Standard version

Accessories for ST 14 / Ex ST 14

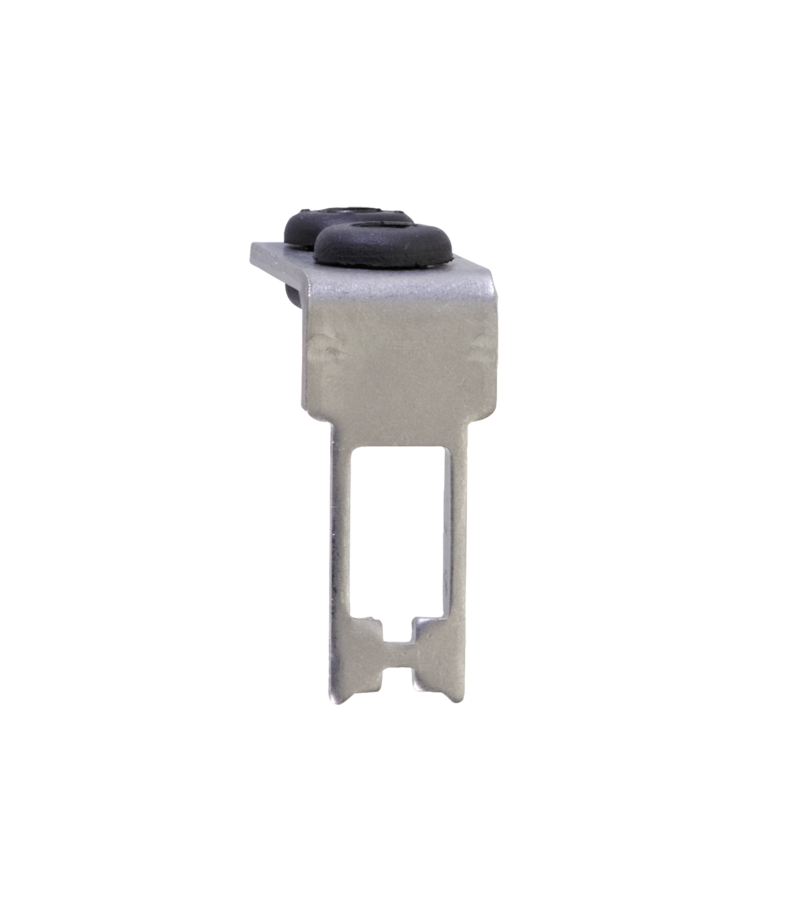

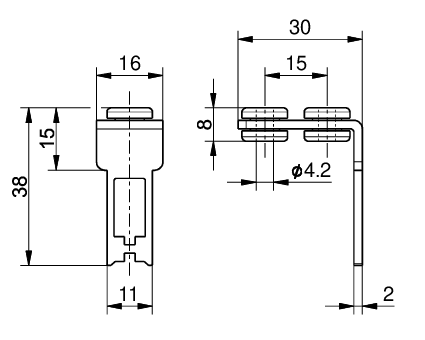

Angled actuator ST 14-B5

Article no.: 1040841Old article no.: 04.14.8202

contact us

Product features

  • Rubber mounting damps vibrations on guard devices

  • Suitable for hinged guards

  • Stainless steel 1.4301

  • Actuating radius on hinged guards:
    Axial misalignment x = 15 mm;
    a = min. 500 mm, b = min. 1000 mm
    Axial misalignment x = 0 mm;
    a = min. 250 mm, b = min. 600 mm

Notes

  • 1 slot sealing plug is included in delivery

Downloads

Data sheet – Angled actuator ST 14-B5

English

PDF91 KB 05.07.2024
Data sheet – Angled actuator ST 14-B5

Chinese

PDF116 KB 05.07.2024
